[RESOLU] LZK 3 et Edirol FA-101 Probléme reconnaissance carte son FireWire
Heureux de revenir parmi vous avec une évolution du systéme.
Au revoir la Hoontech DSP 24 et bonjour la Edirol FA-101
Passage en LZK 3 : BRAVO Olinuxx pour le travail effectué. Aucun souci de wifi sur ce deploiement (vis à vis des déboires que j'ai pu avoir avant)
je passe donc sur une carte FIREWIRE.
voici le ffado-diag:
Copy to clipboard
totof@stationprincipale:~$ ffado-diag FFADO diagnostic utility 2.4.1 (C) 2008 Pieter Palmers 2009-2010 Arnold Krille 2018 Nicolas Boulenguez, Jonathan Woithe gcc /usr/bin/gcc gcc (Debian 8.3.0-6) 8.3.0 g++ /usr/bin/g++ g++ (Debian 8.3.0-6) 8.3.0 pyuic4 None pyuic5 None jackd /usr/bin/jackd jackdmp version 1.9.12 tmpdir /dev/shm protocol 8 pkg-config /usr/bin/pkg-config jack not found libraw1394 not found libavc1394 not found libiec61883 not found libxml++-2.6 not found dbus-1 not found Build time info /usr/lib/x86_64-linux-gnu/libffado/static_info.txt gcc /usr/bin/gcc gcc (Debian 7.3.0-17) 7.3.0 g++ /usr/bin/g++ g++ (Debian 7.3.0-17) 7.3.0 pyuic4 None pyuic5 /usr/bin/pyuic5 Python User Interface Compiler 5.10.1 for Qt version 5.10.1 jackd None pkg-config /usr/bin/pkg-config jack not found libraw1394 2.1.2 -lraw1394 libavc1394 not found libiec61883 1.2.0 -liec61883 -lraw1394 libxml++-2.6 2.40.1 -I/usr/include/libxml++-2.6 -I/usr/lib/x86_64-linux-gnu/libxml++-2.6/include -I/usr/include/libxml2 -I/usr/include/glibmm-2.4 -I/usr/lib/x86_64-linux-gnu/glibmm-2.4/include -I/usr/include/glib-2.0 -I/usr/lib/x86_64-linux-gnu/glib-2.0/include -I/usr/include/sigc++-2.0 -I/usr/lib/x86_64-linux-gnu/sigc++-2.0/include -lxml++-2.6 -lxml2 -lglibmm-2.4 -lgobject-2.0 -lglib-2.0 -lsigc-2.0 dbus-1 1.12.8 -I/usr/include/dbus-1.0 -I/usr/lib/x86_64-linux-gnu/dbus-1.0/include -ldbus-1 kernel version 4.19.0-11-amd64 Preempt (low latency) False RT patched False /dev/fw* ['/dev/fw1', '/dev/fw0'] crw------- 1 root root 246, 0 Sep 26 15:38 /dev/fw0 crw-rw----+ 1 root audio 246, 1 Sep 26 15:38 /dev/fw1 User IDs uid=1000(totof) gid=1000(totof) groups=1000(totof),24(cdrom),25(floppy),29(audio),30(dip),44(video),46(plugdev),109(netdev),114(lpadmin),115(scanner) uname -a Linux stationprincipale 4.19.0-11-amd64 #1 SMP Debian 4.19.146-1 (2020-09-17) x86_64 GNU/Linux lspci /usr/bin/lspci 04:00.0 FireWire (IEEE 1394) [0c00]: VIA Technologies, Inc. VT6306/7/8 [Fire II(M)] IEEE 1394 OHCI Controller [1106:3044] (rev 80) (prog-if 10 [OHCI]) Subsystem: VIA Technologies, Inc. VT6306/7/8 [Fire II(M)] IEEE 1394 OHCI Controller [1106:3044] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping+ SERR+ FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 64 (8000ns max), Cache Line Size: 32 bytes Interrupt: pin A routed to IRQ 19 Region 0: Memory at f7200000 (32-bit, non-prefetchable) [size=2K] Region 1: I/O ports at d000 [size=128] Capabilities: <access denied> Kernel driver in use: firewire_ohci Kernel modules: firewire_ohci lscpu /usr/bin/lscpu Architecture: x86_64 CPU op-mode(s): 32-bit, 64-bit Byte Order: Little Endian Address sizes: 36 bits physical, 48 bits virtual CPU(s): 4 On-line CPU(s) list: 0-3 Thread(s) per core: 1 Core(s) per socket: 4 Socket(s): 1 NUMA node(s): 1 Vendor ID: GenuineIntel CPU family: 6 Model: 58 Model name: Intel(R) Core(TM) i5-3350P CPU @ 3.10GHz Stepping: 9 CPU MHz: 2754.705 CPU max MHz: 3300.0000 CPU min MHz: 1600.0000 BogoMIPS: 6186.46 Virtualization: VT-x L1d cache: 32K L1i cache: 32K L2 cache: 256K L3 cache: 6144K NUMA node0 CPU(s): 0-3 Flags: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good nopl xtopology nonstop_tsc cpuid aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm pcid sse4_1 sse4_2 x2apic popcnt tsc_deadline_timer aes xsave avx f16c rdrand lahf_lm cpuid_fault epb pti tpr_shadow vnmi flexpriority ept vpid fsgsbase smep erms xsaveopt dtherm ida arat pln pts Hardware interrupts IRQ 0 PID count 7,0,0,0 Sched priority drivers IR-IO-APIC,2-edge,timer IRQ 8 PID count 0,0,1,0 Sched priority drivers IR-IO-APIC,8-edge,rtc0 IRQ 9 PID count 0,0,0,0 Sched priority drivers IR-IO-APIC,9-fasteoi,acpi IRQ 16 PID count 0,319,0,9243 Sched priority drivers IR-IO-APIC,16-fasteoi,ehci_hcd:usb1 IRQ 17 PID count 205,144,0,0 Sched priority drivers IR-IO-APIC,17-fasteoi,snd_hda_intel:card2 IRQ 18 PID count 0,0,0,0 Sched priority drivers IR-IO-APIC,18-fasteoi,i801_smbus IRQ 19 PID count 0,0,0,88 Sched priority drivers IR-IO-APIC,19-fasteoi,firewire_ohci IRQ 23 PID count 1953,245,0,270 Sched priority drivers IR-IO-APIC,23-fasteoi,ehci_hcd:usb3 IRQ 24 PID count 0,0,0,0 Sched priority drivers DMAR-MSI,0-edge,dmar0 IRQ 25 PID count 0,0,0,0 Sched priority drivers IR-PCI-MSI,2621440-edge,enp5s0 IRQ 26 PID count 0,0,19585,0 Sched priority drivers IR-PCI-MSI,512000-edge,ahci[0000:00:1f.2] IRQ 27 PID count14329,2319,70658,0 Sched priority drivers IR-PCI-MSI,1048576-edge,xhci_hcd IRQ 28 PID count 0,0,0,0 Sched priority drivers IR-PCI-MSI,1048577-edge,xhci_hcd IRQ 29 PID count 0,0,0,0 Sched priority drivers IR-PCI-MSI,1048578-edge,xhci_hcd IRQ 30 PID count 0,0,0,0 Sched priority drivers IR-PCI-MSI,1048579-edge,xhci_hcd IRQ 31 PID count 0,0,0,0 Sched priority drivers IR-PCI-MSI,1048580-edge,xhci_hcd IRQ 32 PID count 0,69340,1292,0 Sched priority drivers IR-PCI-MSI,524288-edge,nvkm IRQ 33 PID count 0,0,0,15 Sched priority drivers IR-PCI-MSI,360448-edge,mei_me IRQ 34 PID count 483,0,0,0 Sched priority drivers IR-PCI-MSI,442368-edge,snd_hda_intel:card0 Software interrupts module directory /lib/modules/4.19.0-11-amd64 Old 1394 stack ieee1394 not present ieee1394 not loaded ohci1394 not present ohci1394 not loaded raw1394 not present raw1394 not loaded stack active False statically linked False New 1394 stack firewire-core present firewire-core loaded firewire-ohci present firewire-ohci loaded stack active True statically linked False Kernel support: The new FireWire kernel stack is loaded. If running a kernel earlier than 2.6.37 and problems are experienced, either try with the old Firewire kernel stack or upgrade to a newer kernel (preferrably 2.6.37 or later).

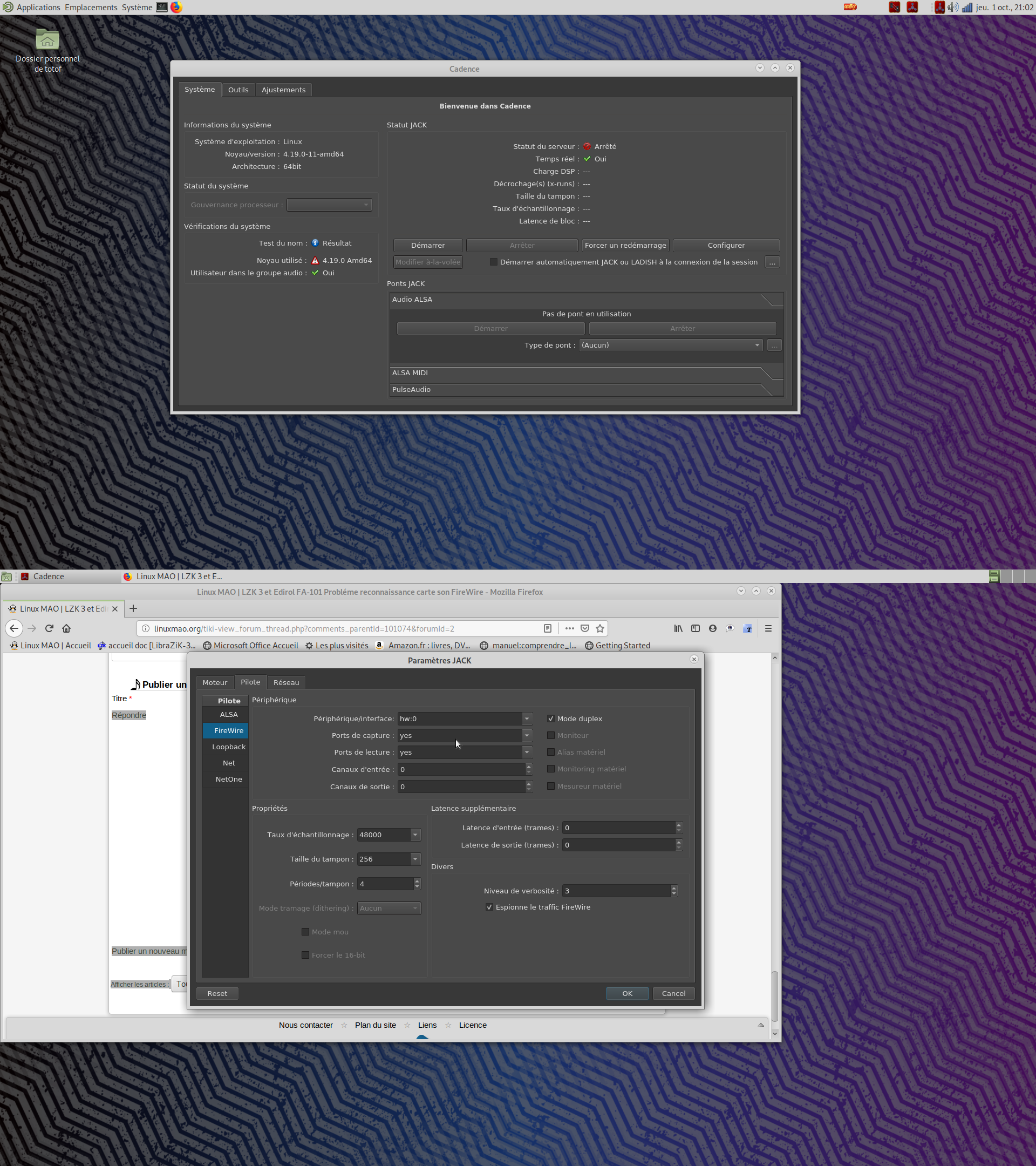

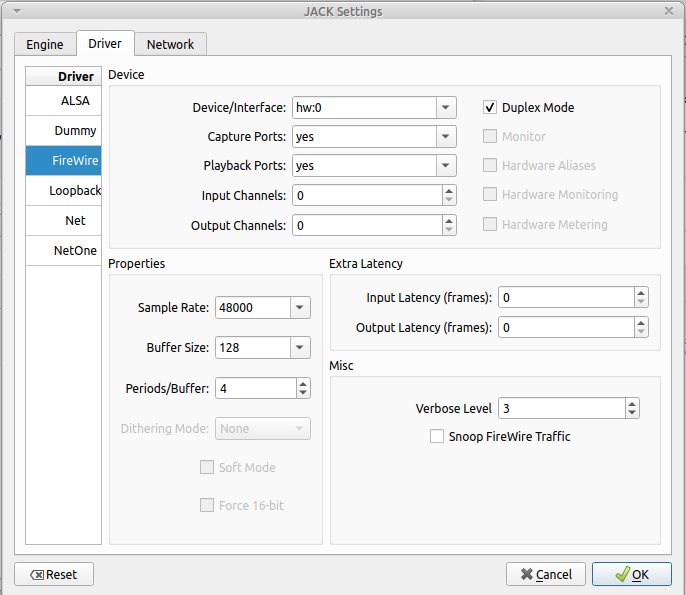

Dans cadence, à l'onglet pilote et la ligne firewire et dans périphérique/interface, je ne trouve pas ma FA-101:
Par contre dans le mixeur ffado, celui-ci me reconnait bien la FA-101:
la je suis au bout de mes connaissances.
Qelqu'un peut venir m'aider.
En vous remerciant par avance.
Musicalement
